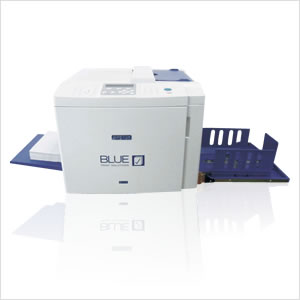

BPS 101


Download PDF Brochure
Cost-efficient Operation
Thanks to an effecient cost control, the BPS 101 provides the lowest cost-performance rate in the industry.

Printing Speed
The BPS 101 provides 5 selectable printing speeds from 35 - 125 cpm.

High image quality
With digital image processing, the BPS 101 provides print quality of the highest standard.

B4 size original scanning
The BPS 101 can scan up to B4 size originals.

Colour Printing Option
Black & white with spot colour in seconds with simple drum change.

Zoom lens
Digital zooming from 70% to 141%


Specifications
Item Function Specification
1 Model BPS 101
2 Operation Fully automatic digital scanning with thermal master making & printing system
3 Original Input Type Cut sheet
4 Paper Size Max. B4 257mm x 364mm
Min. 100mm x 148mm
5 Original Size Max. A3 297mm x 420mm
Min. 100mm x 148mm
6 Printing Size Max. B4 248mm x 350mm
7 Original Thickness 40g/m² - 120 g/m²
8 Original's Mode Text, Photo and Duo mode
9 Scanning Resolution 300 x 400dpi
10 Time of First Print Approx. 20 seconds (B4)
11 Master Size 270mm x 495mm
12 Stencil on / off Automatically Controlled
13 Main Display Alphanumeric Display
14 Output Paper Thickness 40 - 210 g/m²
15 Printing Speed 5 Selectable Speeds from 35 - 125 cpm
16 Zooming Parameters 6 Selectable Zooming 70%, 81%, 87%, 94%, 122% and 141%
17 Printing Position Adjustments Up and Down 40mm (0.5mm steps)
Side to Side 9mm (A4)
18 Ink Feeding Automatically Controlled
19 Density Control Light, Normal & Dark (5 steps)
20 Paper tray capacity Feeding 400 sheets/70g
Outlet tray 800 sheets/70g
21 Dimension Packed: 590mm x 620mm x 490mm
Operating: 1156mm x 620mm x 490mm
22 Weight 58kgs
23 Power Supply 220V AC 50Hz 2A or 110V AC 60Hz 4A
