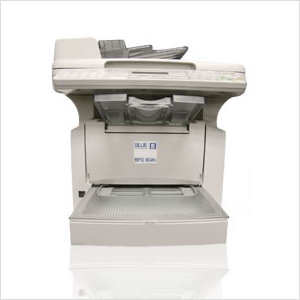

BPS 904 N





Download PDF Broucher		 Cost-efficient Operation
Thanks to an effecient cost control, the BPS 300
provides the lowest cost-performance rate in the industry.

Printing Speed
The BPS 300 provides 5 selectable printing speeds from 50 - 125 cpm.

High image quality
With digital image processing, the BPS 300 provides print quality of the highest standard.

A3 size original scanning
The BPS 300 can scan up to A3 size originals.

Colour Printing Option
Black & white with spot colour in seconds with simple drum change.

Zoom lens
Digital zooming from 50% to 200%

Book Copying
The flat bed on the BPS 300 allows scanning from books and / or thick documents

Computer Connectivity Highlight
USB - Standard on the BPS 300

Specifications
Item Function Specification
1 Model BPS 300
2 Operation Fully automatic digital scanning with thermal master making & printing system
3 Original Input Type Cut sheet, Book and Computer Input (USB)
4 Paper Size Max. A3 297mm x 420mm
Min. 100mm x 148mm
5 Original Size Max. A3 297mm x 420mm
Min. 100mm x 148mm
6 Printing Size Max. A3 285mm x 406mm
7 Original's Mode Text, Photo and Duo mode
8 Scanning Resolution 300 x 400dpi
9 Time of First Print Approx. 65 seconds
10 Master Size 310mm x 585mm
11 Stencil on / off Automatically Controlled
12 Main Display Numeric (4 Digits)
13 Output Paper Thickness 40 - 210 g/m²
14 Printing Speed 5 Selectable Speeds from 45 - 130 cpm
15 Zooming Parameters 6 Selectable Zooming 70%, 81%, 87%, 94%, 122% and 141%
Zooming 50% - 200%
16 Printing Position Adjustments Up and Down ± 15mm
17 Ink Feeding Automatically Controlled
18 Density Control Lighter, Light, Normal, Dark & Darker
19 Paper tray capacity 1000 sheets/60g
20 Dimension Packed: 675mm x700mm x 620mm
Operating: 1280mm x 700mm x 620mm
21 Weight N.W. 93kgs G.W. 108kgs
22 Power Supply 220V AC 50Hz 250W
